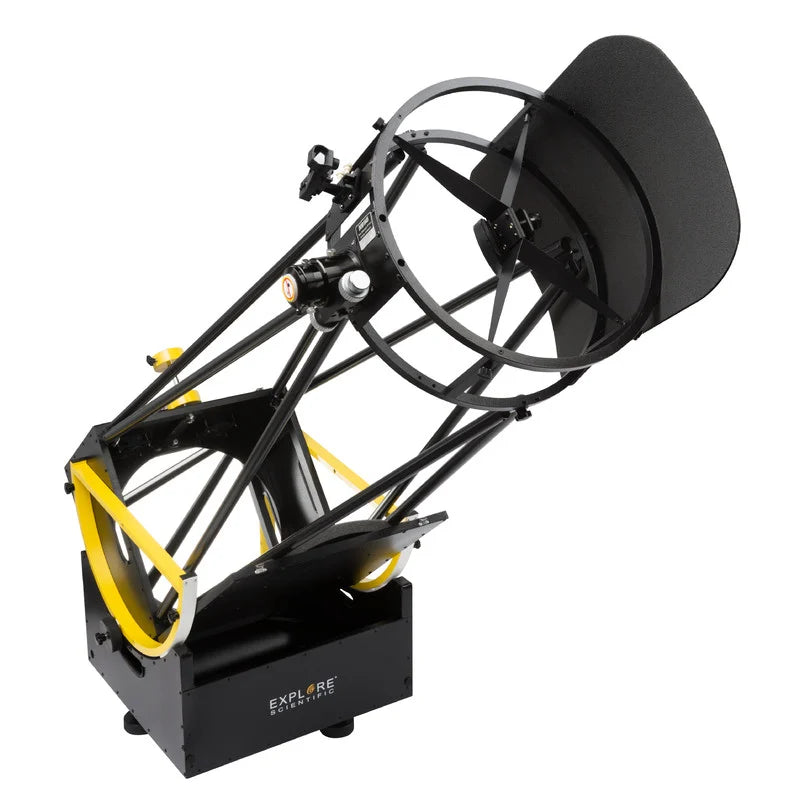

Ultra Light Dobsonian 406mm GENERATION II - with completely redesigned and improved construction

No type of telescope has changed amateur astronomy as much as Dobsonian telescopes. Before John Dobson's introduction of the Dobson telescope, the vast majority of amateur telescopes were small-lens telescopes with primitive mechanics, just enough to see the polar caps of Mars or the rings of Saturn. Larger telescopes, such as Schmidt-Cassegrains, were reserved for a wealthy clientele. The ingenious combination of simple but effective mechanics with the largest possible aperture gave the Dobsonian telescope a unique triumphal march in the world. Nowhere do you get as much light for your money as with a good dobsonian. We took into account the principle "Held by gravity and driven by the power of yogurt" (powered by gravity and fueled by the energy of yogurt) and created a completely redesigned modern Dobsonian telescope with a truss tube. The disassembly of the device allows the problem-free transport of this large device even in small cars - the structure is completely without tools in a few minutes. The entire construction has been optimized for maximum stiffness without neglecting weight. The combination of high-height wheels with an optimized aluminum sandwich construction enables the best correction movements at maximum magnifications. The focal position has already been prepared for the use of our coma corrector. The ideal workhorse for the deep sky observer. A device with a mirror diameter of 406 mm collects more than 3300 times more light than with the naked eye. The details on the planets are visible even to untrained observers, and countless deep-sky objects show structure. The brilliant star clusters are resolved to the core and the sight of the Terminator on the moon becomes an unforgettable experience.

Transport dimensions for mobile use: Rockerbox 550mmx550mmx330mm; Mirror box 480mmx480mmx300mm; Barrel length about 1250mm "> Intuition height in Zenitstellung about 1.63m; 16" total weight: 38.4kg; 16 "mirror box: 23.8 kg; 16" top with Fangspiegel + Rockerbox bottom: 10.5 kg; 16 "4 pairs of struts : 2.5 kg; wheel pair height 16 ": 1.6 kg, thread mount focuser: M54 x 0.75 mm

CHARACTERISTICS

• Dobsonian mesh tube in all aluminum construction
• Novelty: plain bearings made of TEFLON and GRP, therefore very sensitive tracking
• Novelty: Improved primary mirror cell with precise adjustment mechanism
• Novelty: friction adjustment and braking system on both sides of the high-altitude bearings
• Novelty: large feet for better stability
• Novelty: Universal scope shoe for easy scope upgrade
• Novelty: 2 x 1.0 kg balancing weights included
• Novelty: quick release fasteners with spring element for easier handling
• Novelty: powder coated wheels for durability
• Novelty: laser engraved main mirror center mark

Equipment:

• Dobsonian telescope with grid tube
• LED sight with standard sight shoe
• Stray light protection for the secondary mirror cage
• Main mirror adjustment tool
• Battery box with pocket for fans
• Weight scale 2 x 1.0 kg
• Extension sleeve for focuser
• 2" to 1.25" Adapter Reducer
• Instructions for Use
