Description

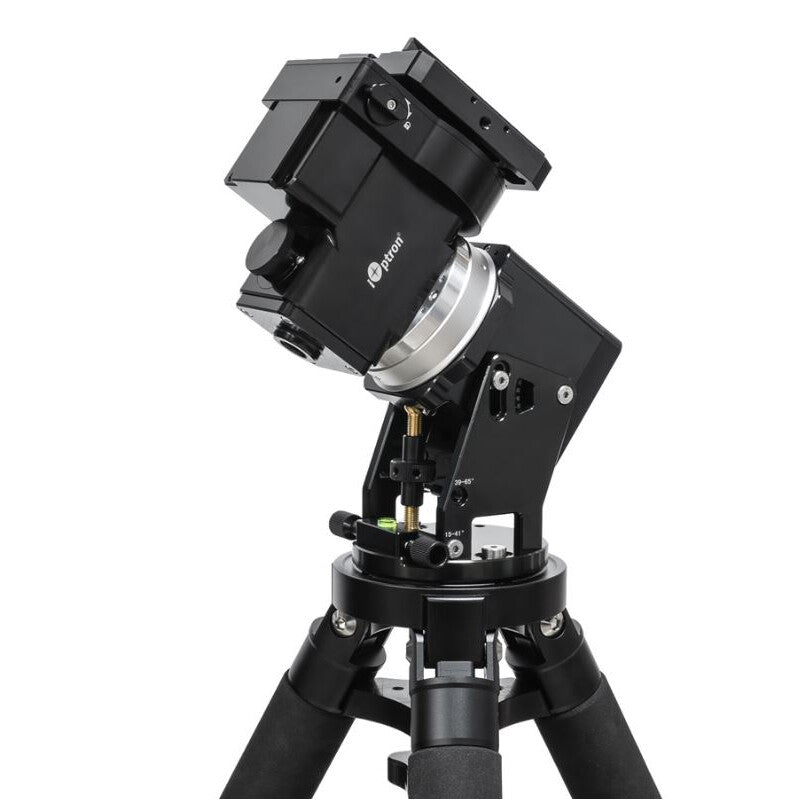

With the introduction of the HEM27 and HEM27 EC , it features iOptron's revolutionary hybrid strain wave drive. These small, lightweight, high-payload titans will deliver an astronomical experience like never before. Imagine a mounting head weighing 8.15 pounds ( 3.7 kg) with a payload capacity of 29.74 lbs ( 13.5 kg), without the need for a counterweight or a bulky shaft. Applying iOptron's decades of experience in creating precision mounts, the HEM27 makes this vision a reality.
Utilizing cutting-edge strain wave drive technology for RA motion in tandem with DEC's backlash-free worm/belt drive design, the HEM27s deliver unprecedented weight for payload efficiency. Its black anodized metal CNC machined body isn't just appealing to the eye, it's a rugged platform that will perform at the highest levels for many years to come. Unique features like an electronic friction switch and power-off memory allow the mount to safely stop and resume a GoTo rotation or continue tracking even after an abrupt loss of power (no need to realign and start over).
A HEM27 mount can be controlled from a computer, via ASCOM/Commander for a Windows PC or a third-party INDI driver for MacOS software; a SmartPhone/Tablet via iOptron Commander Lite or an App such as SkySafari; or a Raspberry Pi device via INDI driver.
The HEM27 EC features a high-precision RA-axis encoder that offers incredible tracking accuracy, so much so that many will choose to view “unguided” images.
Learn more about HEM27 mount
Characteristics:
- Advanced strain wave drive technology
- Payload capacity of 13.5 kg (29.7 lbs) with stand weight of 3.7 kg (8.15 lbs)
- CNC machined
- Unique friction brake to safely stop movement during a planned or unplanned power outage
- Running period 360 seconds
- Permanent Periodic Error Correction (PPEC)
- Go2Nova® hand controller with ~212,000 object databases
- iPolar electronic polar oscilloscope for easy and precise polar alignment
- Cable management system, no external cables hanging from moving parts
- Double saddle (Vixen and Losmandy-D styles)
- Integrated zero position search and locator
- Turn off position and position memory
- Integrated ST-4 autoguiding port
- Built-in Wi-Fi (via hand controller)
- USB port for firmware update and computer control

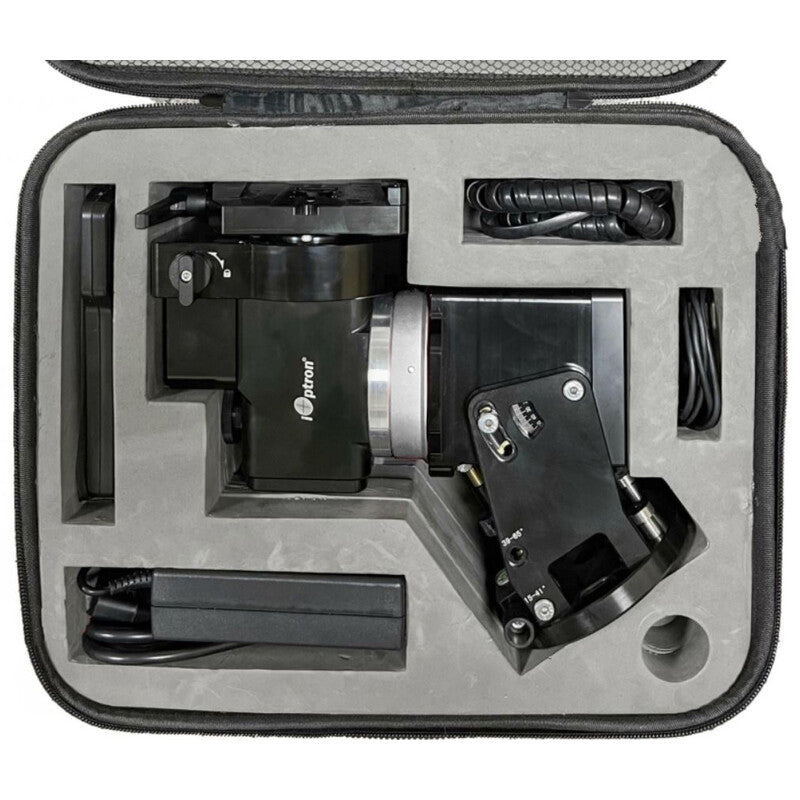

- Soft carrying case
