Description
Complete H-alpha solar telescope with 130 mm aperture and <0.7 Angtröm bandwidth. With Feather-Touch focuser, innovative air pressure regulation system and B1800 blocking filter.
LS130MT is a 3-lens ED apochromat with a modular structure! The telescope can also be used for observations of the night sky and with the optionally available accessories to observe the sun with Ca-K wavelength and white light!
LS130MT/B1800 is a complete telescope for observing the sun in H-alpha light, with a free aperture of 130 mm (no central obstruction) and a focal length of 910 mm . The greater resolution compared to telescopes with smaller apertures allows the observer to immerse themselves in the smallest details and ever-changing surface phenomena of our sun. The higher resolution allows for greater magnifications, which allows you to have an extremely detailed view of the sun in the eyepiece or on the screen.
An internal Etalon filter with the innovative air pressure tuning system Pressure Tuner achieves a bandwidth of <0.7 Angstroms . Fine-tuning occurs via a slight change in air pressure in a pressure chamber inside the telescope. This changes the refractive index of the air, making it easy to fine-tune the H-alpha line. The pressure tuner ensures a uniform image, without central obstruction, and a permanently protected Etalon without wear. A series of collimating lenses installed in the telescope ensures the best performance.
Focusing is performed by the legendary 2" Feather-Touch focuser from Starlight-Intruments with a focusing distance of 1.5" and reduction of 1:10.
The blocking filter is B1800. B1800 is very suitable for visual solar observation and also for solar photography with both small and large sensor chip cameras. For cameras with large sensor chips, we recommend an LS130MT with a B3400 blocking filter.

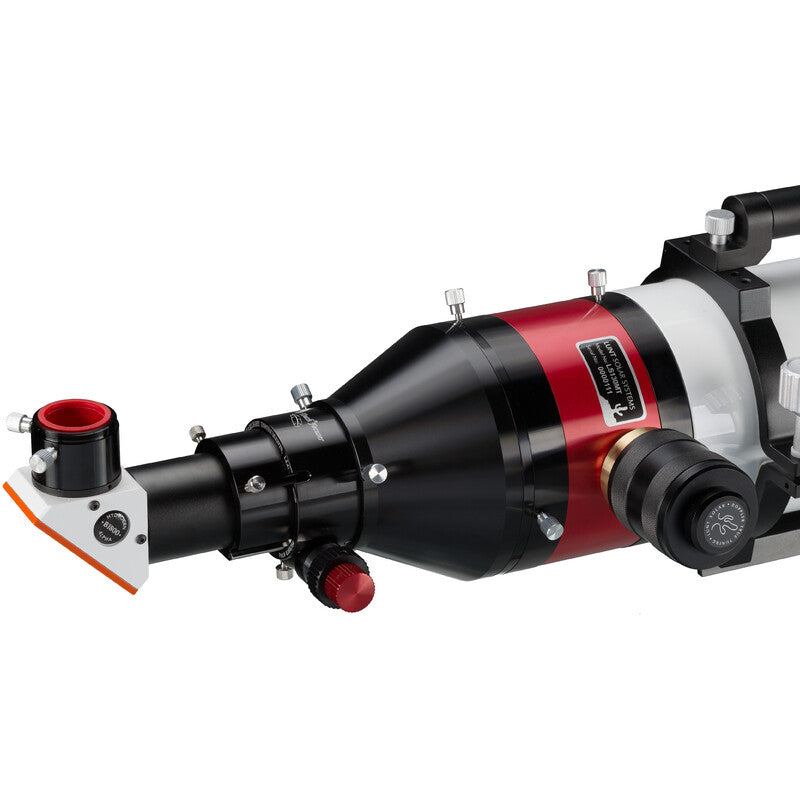

The Zenit mirror, in which the blocking filter is integrated, is equipped as standard with both a 1.25 inch eyepiece socket and a T2 connection for cameras.
The LS130MT telescope can also be optionally equipped with the optionally available Double-Stack l DSII system (item code 0551690). The DSII system is a Double-Stack internal module with pressure tuner , achieving a bandwidth <0.5 Angstroms. This makes details on the sun's surface even more visible.

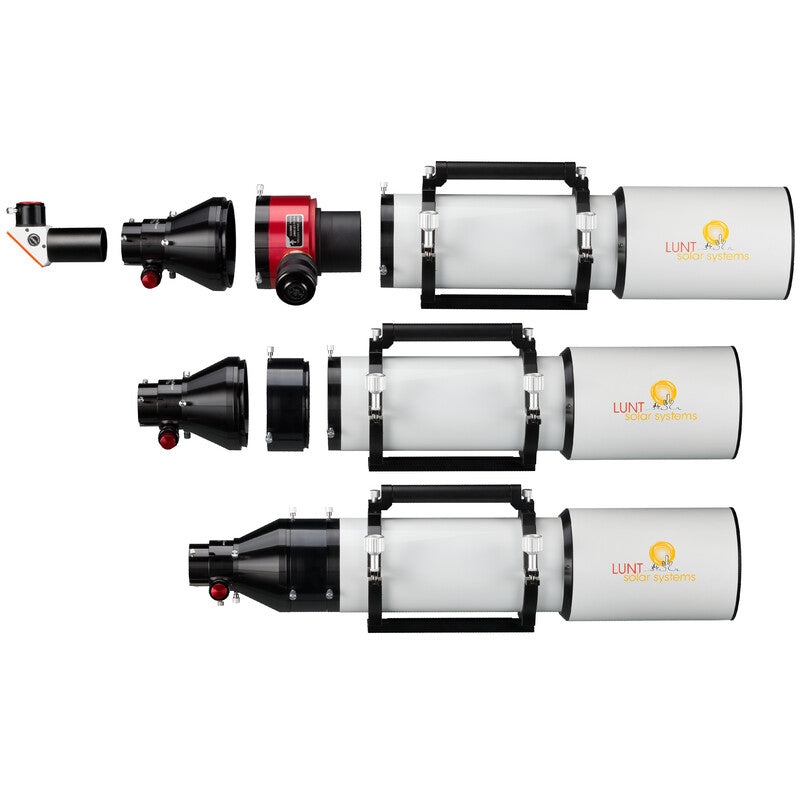

Modular system:
The H-Alpha Etalon system can be removed from the telescope in a few simple steps. The 3-lens ED apochromat can therefore be used as a normal telescope for observation and photography of the night sky.
A Ca-K module (part number 0551697) developed specifically for the LS130MT is also available. This means that the sun can also be observed in the blue calcium wavelength.
Of course, a Herschel wedge (item number 0558201) can also be used for observing the sun in white light.
This makes the LS130MT a completely universal telescope!
CHARACTERISTICS
LS130MT is a 3-lens ED apochromat with a modular structure! The telescope can also be used for observations of the night sky and with the optionally available accessories to observe the sun with Ca-K wavelength and white light!
LS130MT/B1800 is a complete telescope for observing the sun in H-alpha light, with a free aperture of 130 mm (no central obstruction) and a focal length of 910 mm . The greater resolution compared to telescopes with smaller apertures allows the observer to immerse themselves in the smallest details and ever-changing surface phenomena of our sun. The higher resolution allows for greater magnifications, which allows you to have an extremely detailed view of the sun in the eyepiece or on the screen.
An internal Etalon filter with the innovative air pressure tuning system Pressure Tuner achieves a bandwidth of <0.7 Angstroms . Fine-tuning occurs via a slight change in air pressure in a pressure chamber inside the telescope. This changes the refractive index of the air, making it easy to fine-tune the H-alpha line. The pressure tuner ensures a uniform image, without central obstruction, and a permanently protected Etalon without wear. A series of collimating lenses installed in the telescope ensures the best performance.
Focusing is performed by the legendary 2" Feather-Touch focuser from Starlight-Intruments with a focusing distance of 1.5" and reduction of 1:10.
The blocking filter is B1800. B1800 is very suitable for visual solar observation and also for solar photography with both small and large sensor chip cameras. For cameras with large sensor chips, we recommend an LS130MT with a B3400 blocking filter.
The Zenit mirror, in which the blocking filter is integrated, is equipped as standard with both a 1.25 inch eyepiece socket and a T2 connection for cameras.
The LS130MT telescope can also be optionally equipped with the optionally available Double-Stack l DSII system (item code 0551690). The DSII system is a Double-Stack internal module with pressure tuner , achieving a bandwidth <0.5 Angstroms. This makes details on the sun's surface even more visible.
Modular system:
The H-Alpha Etalon system can be removed from the telescope in a few simple steps. The 3-lens ED apochromat can therefore be used as a normal telescope for observation and photography of the night sky.
A Ca-K module (part number 0551697) developed specifically for the LS130MT is also available. This means that the sun can also be observed in the blue calcium wavelength.
Of course, a Herschel wedge (item number 0558201) can also be used for observing the sun in white light.
This makes the LS130MT a completely universal telescope!
CHARACTERISTICS
- 3-lens ED apochromatic, FPL-51
- Opening: 130 mm (without central obstruction)
- Focal length: 910mm
- Bandwidth: Internal Etalon with <0.7 Angstroms
- Tuning: Air pressure tuning system
- Blocking filter: B1800 with 1.25 inch connection and T2
- Focuser: Starlight-Instruments Feather-Touch focuser with 1:10 reduction
- Two hose clamps with handle
- Prismatic guide with GP level for astronomical mounts
- Weight: 12.1kg
- Length with blocking filter and anti-condensation cap: 100 cm
- Length without blocking filter and retracted anti-condensation cap: 80 cm
PACKAGE CONTENTS
- LS130MT all-round telescope
- Pressure Tuner
- B1800 blocking filter in the Zenit mirror
- 2" Feather-Touch focuser
- Hose extension for use without H-Alpha Etalon
- Hose clamps with prismatic guide

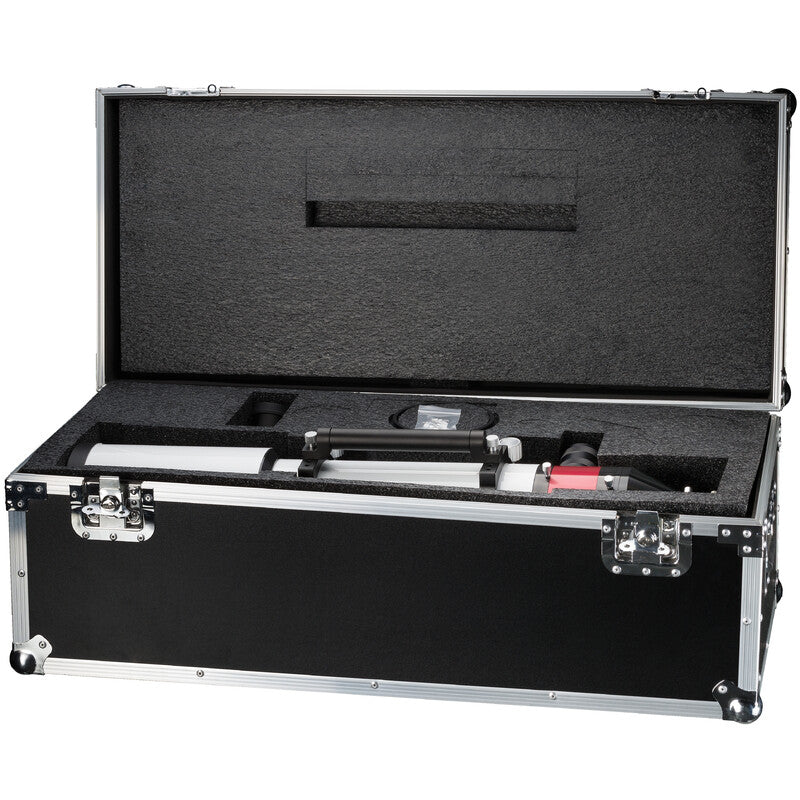

- Transport case (92x42x35cm)
- User Manual
Technical data
| FIELD OF APPLICATION | |
|---|---|
| Field of application |
|
| OPTICAL SPECIFICATIONS | |
| Optical configuration | Apochromatic refractor |
| Mirror/lens diameter | 130 mm |
| Focal length | 910 mm |
| Opening report | 7 |
| Angular resolution (arcseconds) | 1.06 |
| Width at half height (Angström), less than | 0.7 |
| GENERAL TECHNICAL DATA | |
| Outer diameter | 31.7mm |
| Mount type | Rimless optics |
| Extended warranty | 5 years |
| DIMENSIONS & WEIGHTS | |
| Total length | 920 mm |
| Overall width | 420 mm |
| Total height | 350 mm |
