In short:

• Load capacity up to 20 kg without counterweights
• Integrated zero position and geolocation
• Controllable using ASCOM and INDI drivers or on the go using iOptron Commander Lite, SkySafari and Raspberry Pi
• Sturdy metal casing and durable

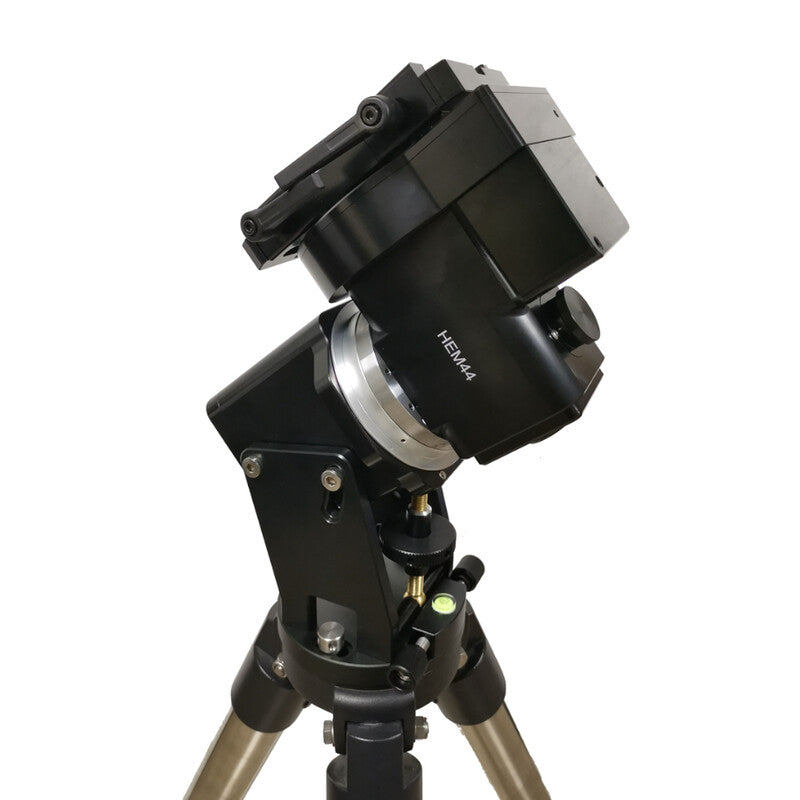

Although the mount itself weighs only 6.2 kg, it is possible to mount telescopes up to 20kg of weight on this mount without the need for counterweights.

The enclosure of the HEM44 is made from CNC machined metal which is not only aesthetically pleasing, but also provides a sturdy base that will perform at a high level for many years.

Funitions as a electronic brake it's a shutdown device allow the HEM44 to safely stop and start GoTo alignment, even after an unexpected power failure (no need for realignment and zero positioning). The media can be checked using a Windows PCs (using ASCOM or Commander drivers) or MacOS (using a third party INDI driver), but also on the go using iOptron Commander Lite, SkySafari and a Raspberry Pi.

WITHOUT TRIPOD

_________________________________________

Please read the Quick Installation Guide (QSG) BEFORE installing and using the mount! Please also read the complete online instruction manual for details. A HEM mount has an internal cable management system. To avoid damage to the cable, a mechanical stop is implemented on the RA axis to prevent rotation more than 360 degrees. Due to the powerful strain wave gear torque in these mounts, damage to the stopper can occur if:

1.) "Site and time" are set incorrectly and
2.) The mount is started from an incorrect zero position.

Perform these steps when starting the HEM mount: "MENU => Zero Position => Searching for Zero Position" to establish the zero position. Then he manually rotated the mount beyond the meridian by 20 degrees.

Characteristics

• Advanced strain wave drive technology
• Payload capacity of 20 kg (44 lbs) with stand weight of 6.2 kg (13.65 lbs)
• CNC machined
• Unique friction brake to safely stop movement during a planned or unplanned power outage
• 270 second running period
• Go2Nova® hand controller with ~212,000 object databases
• Cable management system, no external cables hanging from moving parts
• Double saddle (Vixen and Losmandy-D styles)
• Integrated zero position search and locator
• Turn off position and position memory
• Integrated ST-4 autoguiding port
• Built-in Wi-Fi (via hand controller)
• USB port for firmware update and computer control
• Aluminum case
